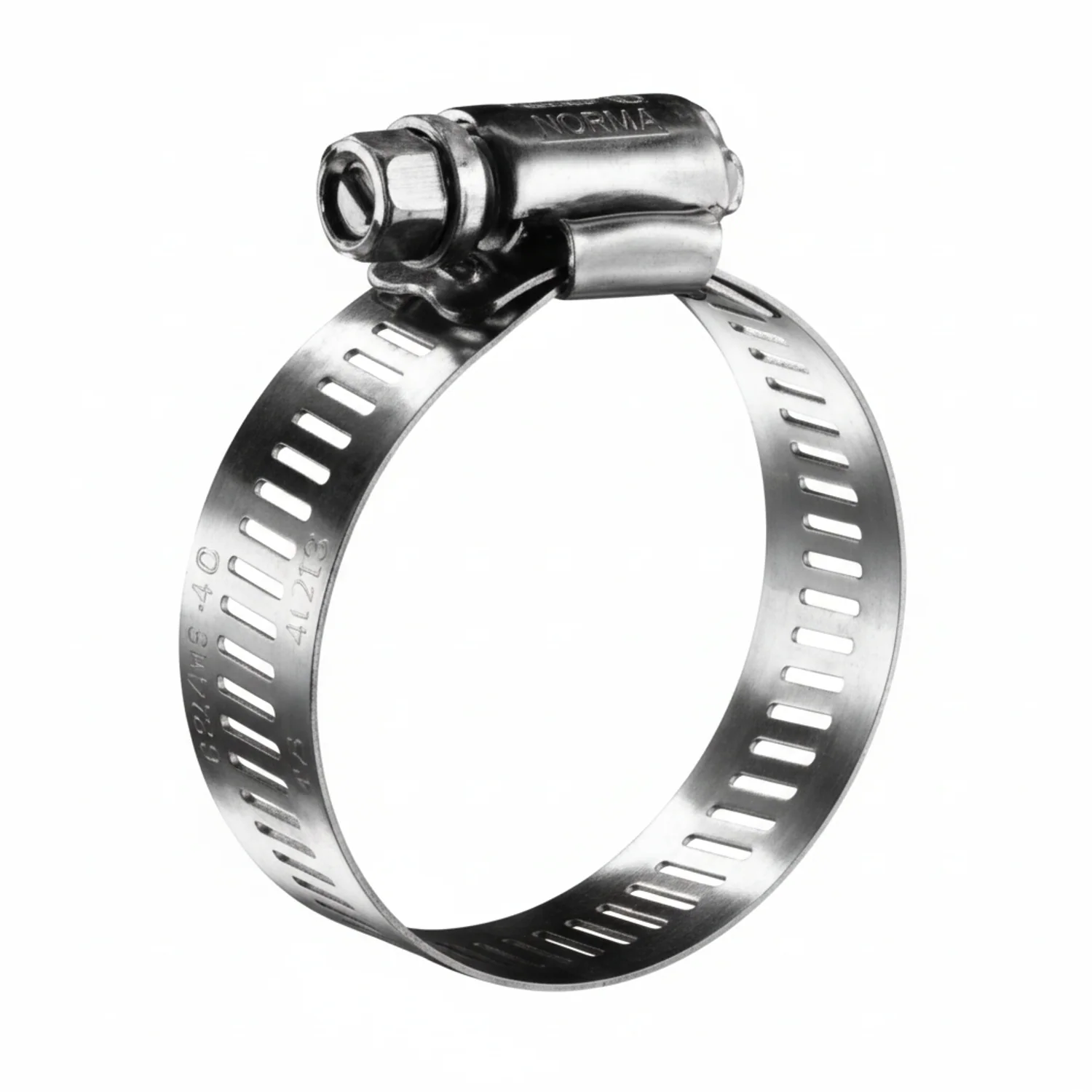

#96P Stainless Steel Hose Clamp w/ Zinc Plated Screw 10/Box

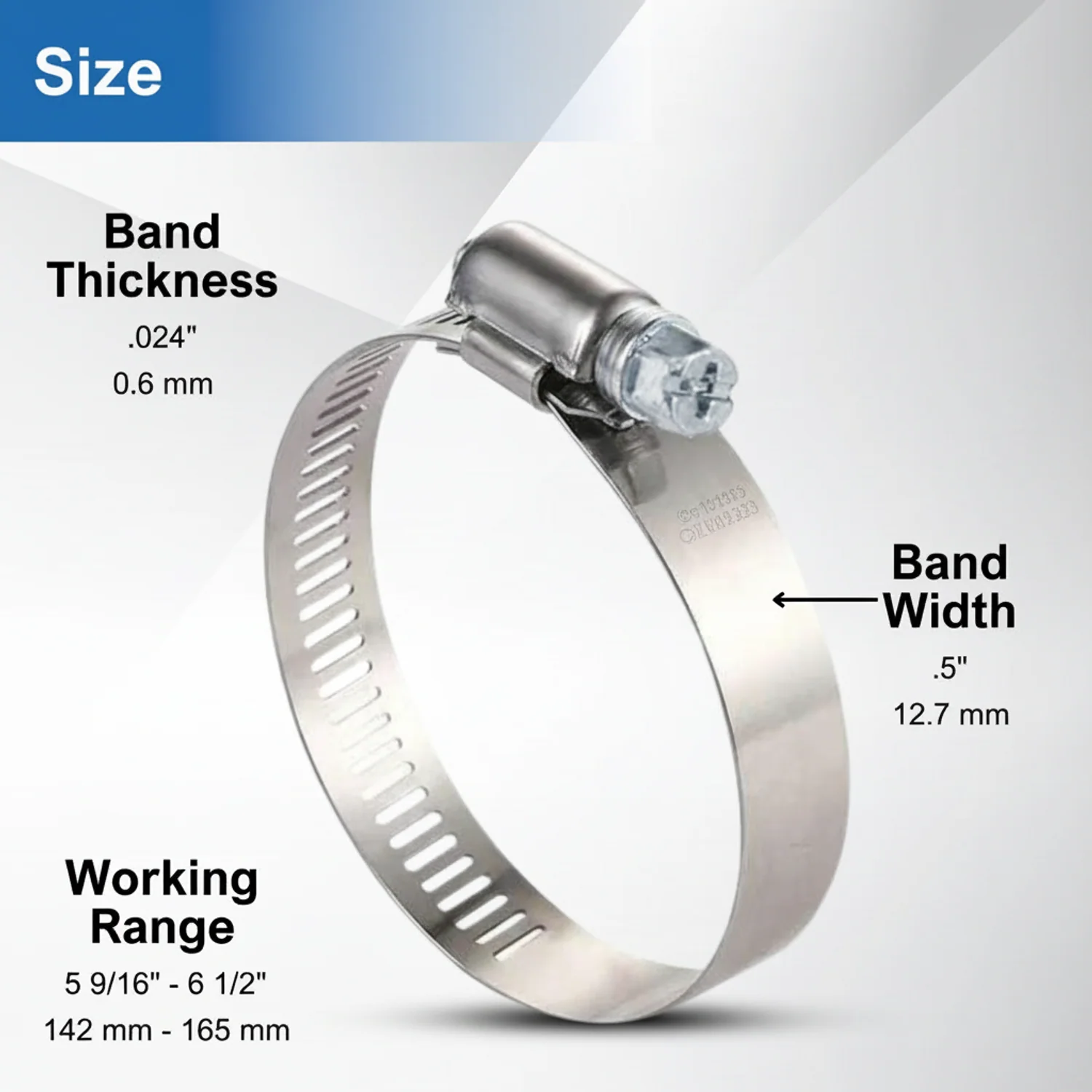

1/2" Band | Adjustable Range: 5 9/16" - 6 1/2"

The #96P Stainless Steel Hose Clamp w/ Zinc Plated Screw is a worm-drive clamp engineered to provide secure hose and tubing retention in industrial, automotive, marine, HVAC, and general-purpose applications. It features a 304 Series stainless steel band, a 304 Series stainless steel housing, and a zinc-plated 5/16″ slotted hex head screw to deliver dependable clamp force and balanced corrosion resistance where plated screw clamps are specified.

Specifications

• Band Width: 1/2″

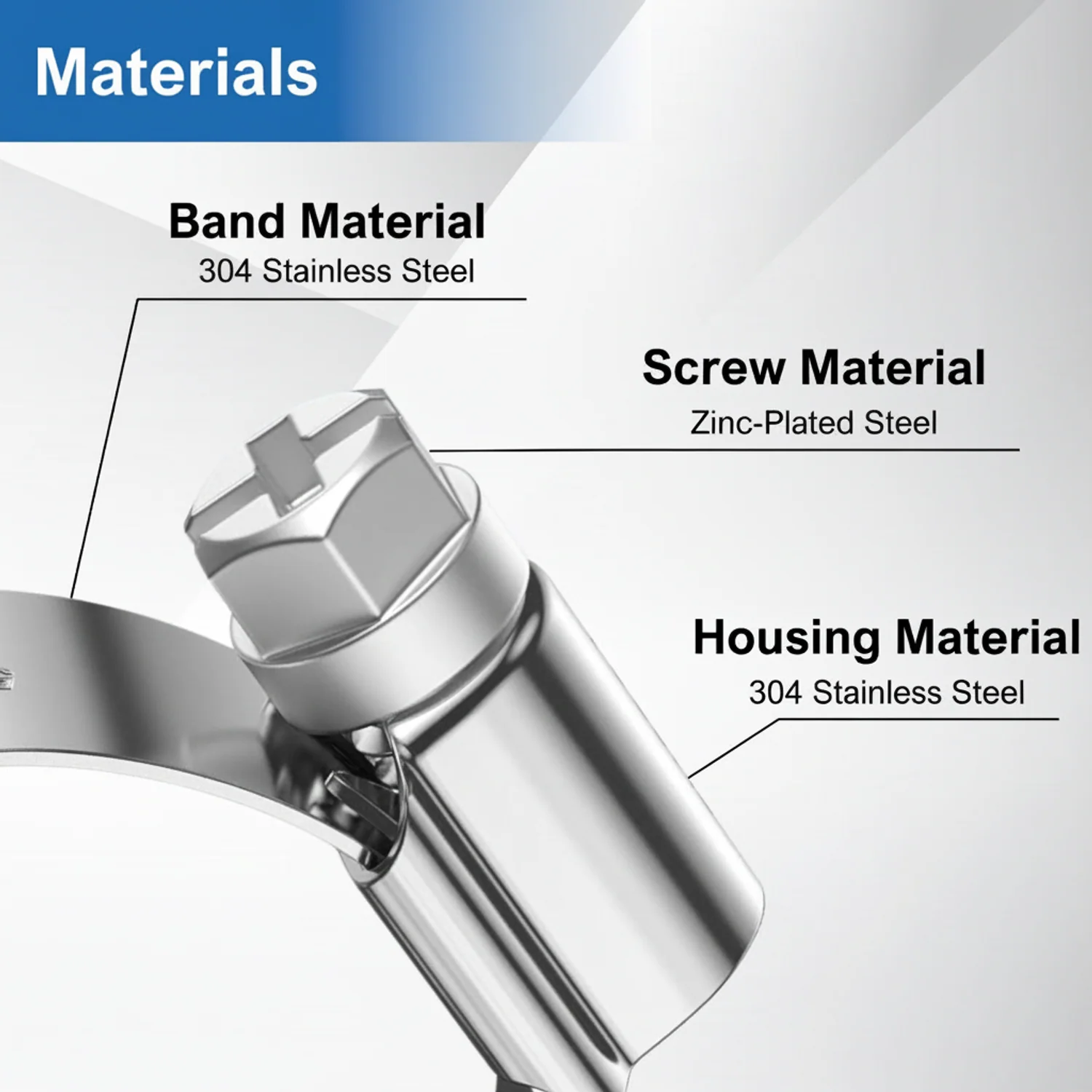

• Material — Band: 304 Series Stainless Steel
• Material — Housing: 304 Series Stainless Steel
• Screw Type: Zinc plated 5/16″ slotted hex head
• Torque Performance: Exceeds 60 inch-pounds of torque
• Recommended Installation Torque: 35–45 in.lbs. (4.0–5.1 Nm)
• Compliance: RoHS Compliant — No hexavalent chromium (Cr(VI)) material

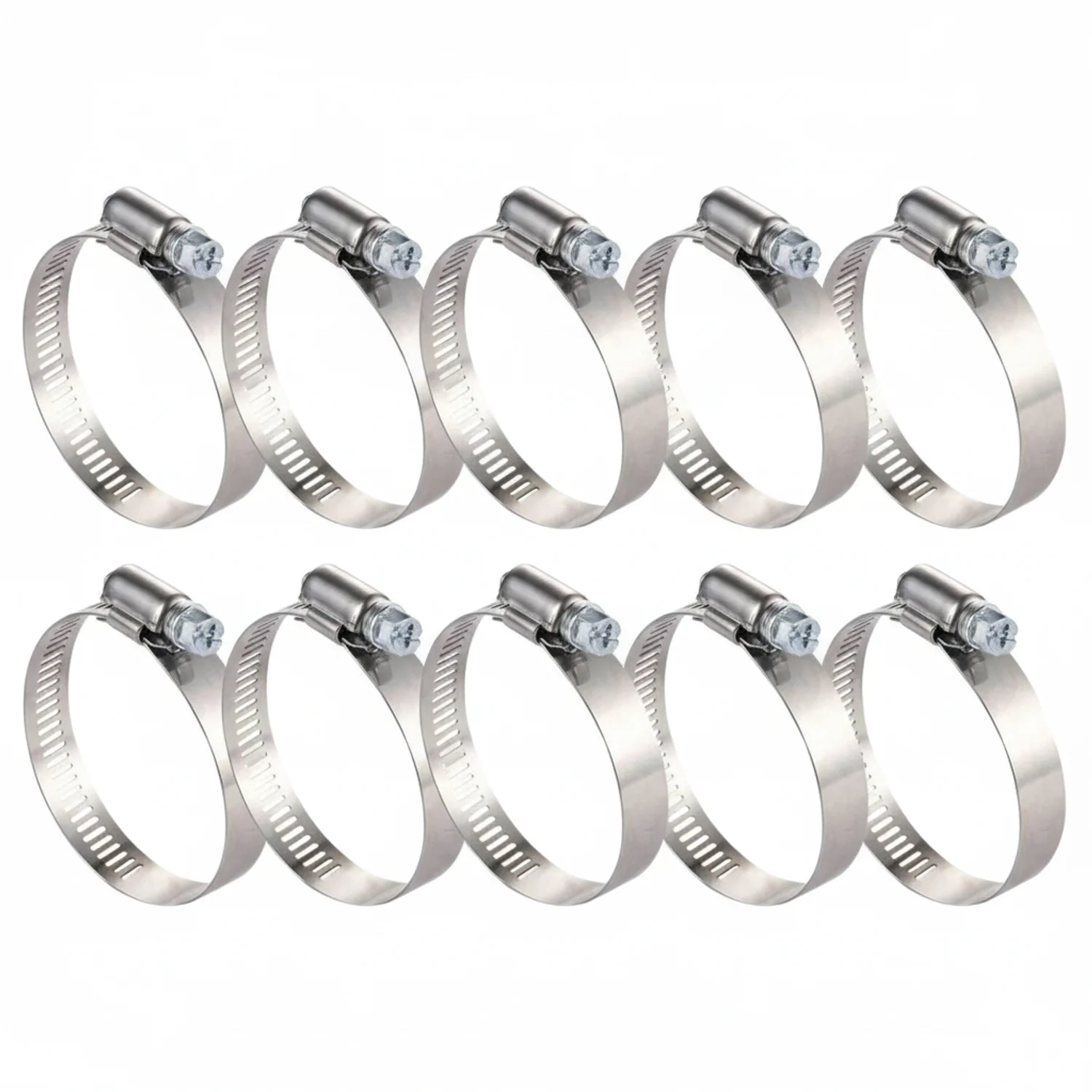

• Packaging: Sold in boxes of 10

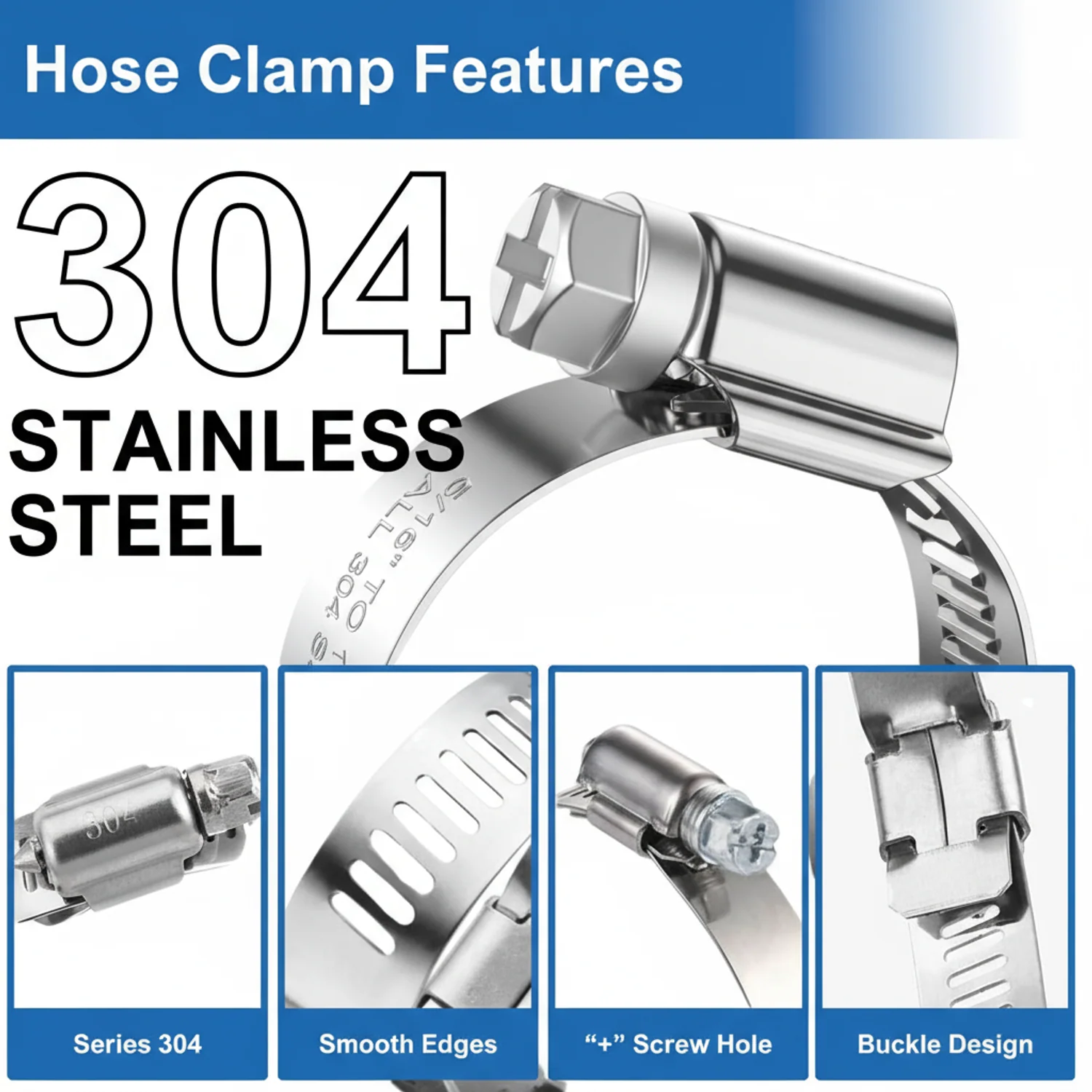

Performance Advantages

• 304 Series stainless steel band provides strength and corrosion resistance
• 304 Series stainless steel housing offers structural durability and balanced protection
• Zinc plated 5/16″ slotted hex head screw allows installation with common tools
• Exceeds 60 in.lbs torque capability for secure sealing
• Recommended torque range ensures consistent clamp tension
• RoHS compliant materials without hexavalent chromium

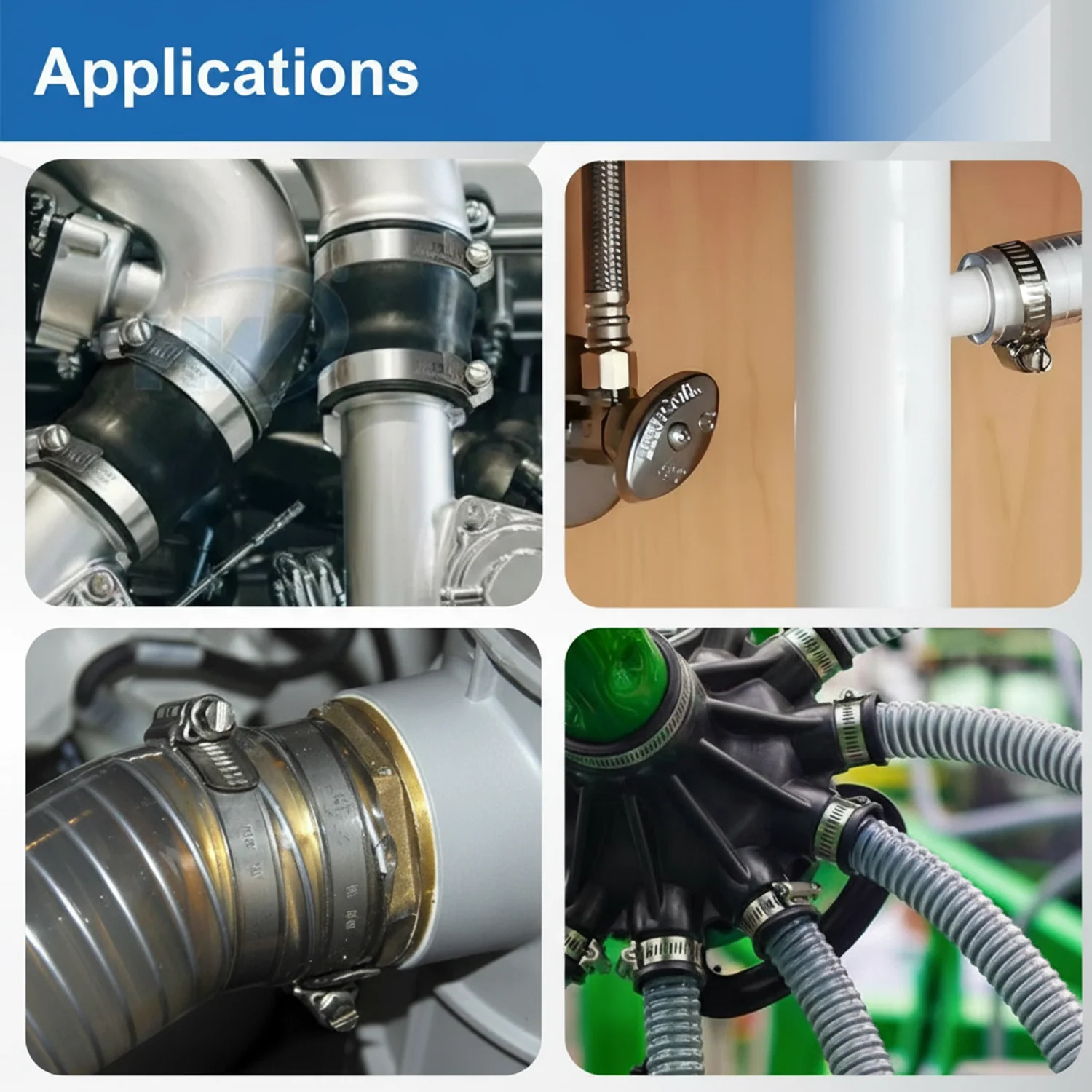

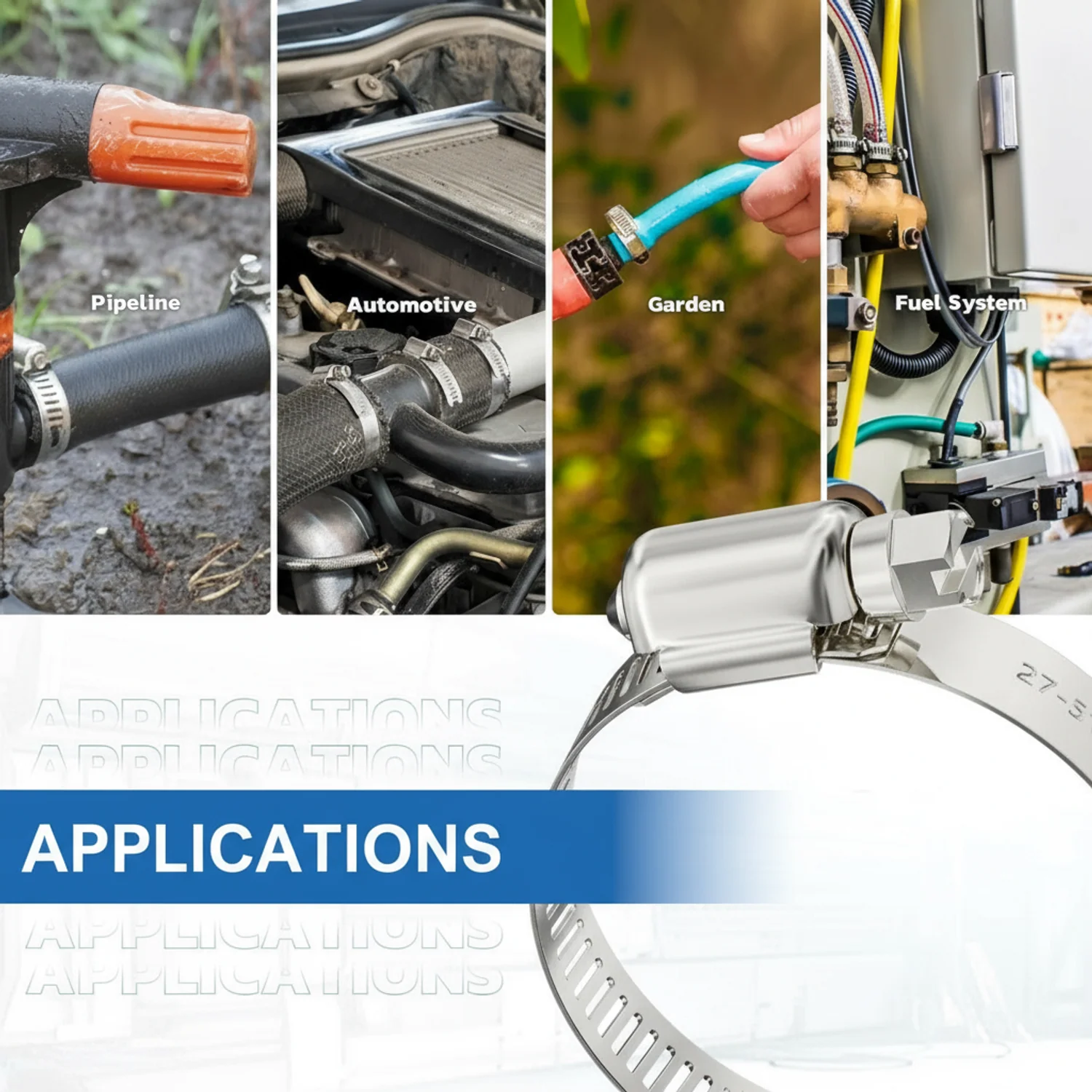

Applications

• Industrial fluid transfer and process hose assemblies
• Automotive cooling, vacuum, and fuel hose systems
• Marine bilge and plumbing hose retention
• HVAC condensate and duct hose applications
• Agricultural irrigation and equipment hose lines
• General-purpose workshop and machinery hose securing

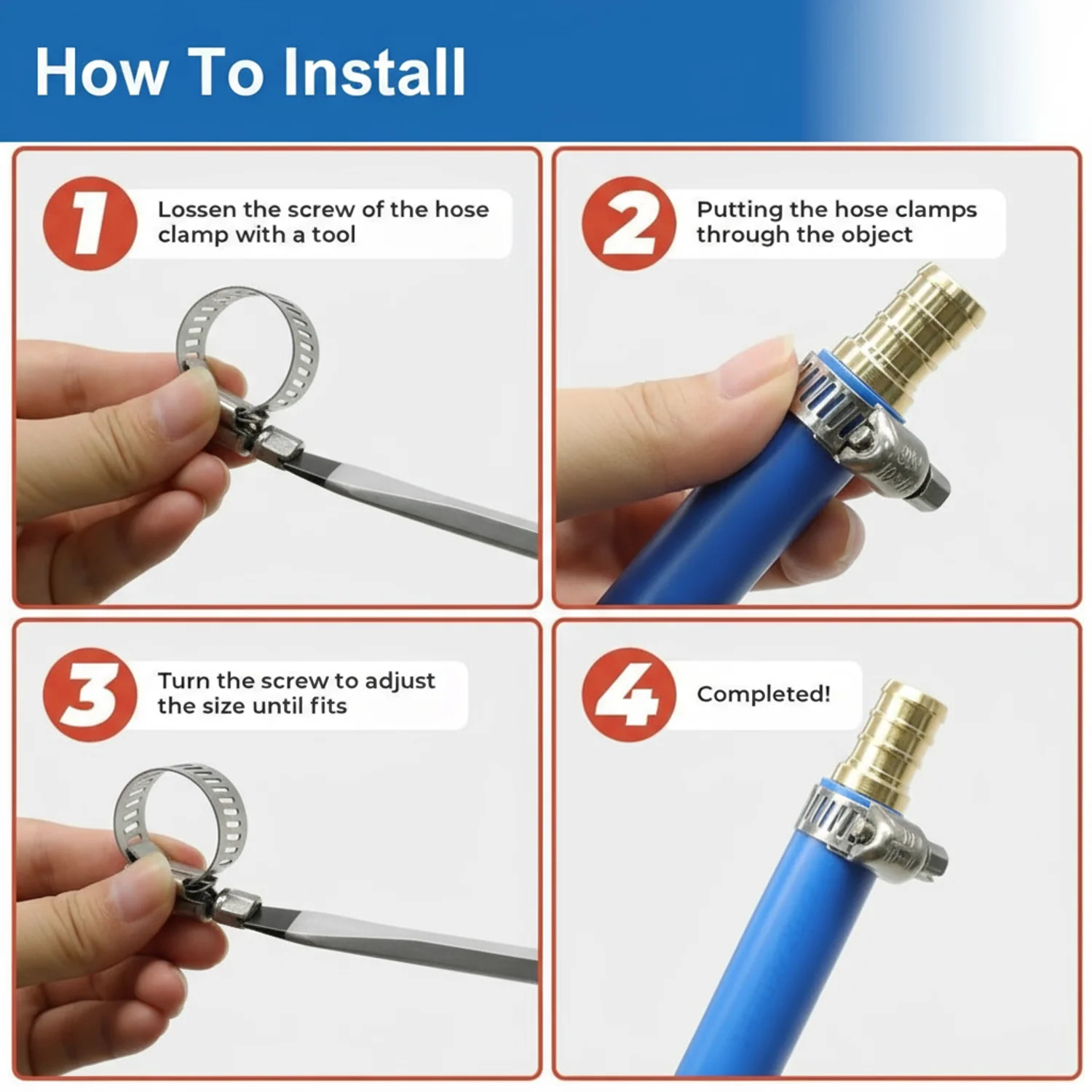

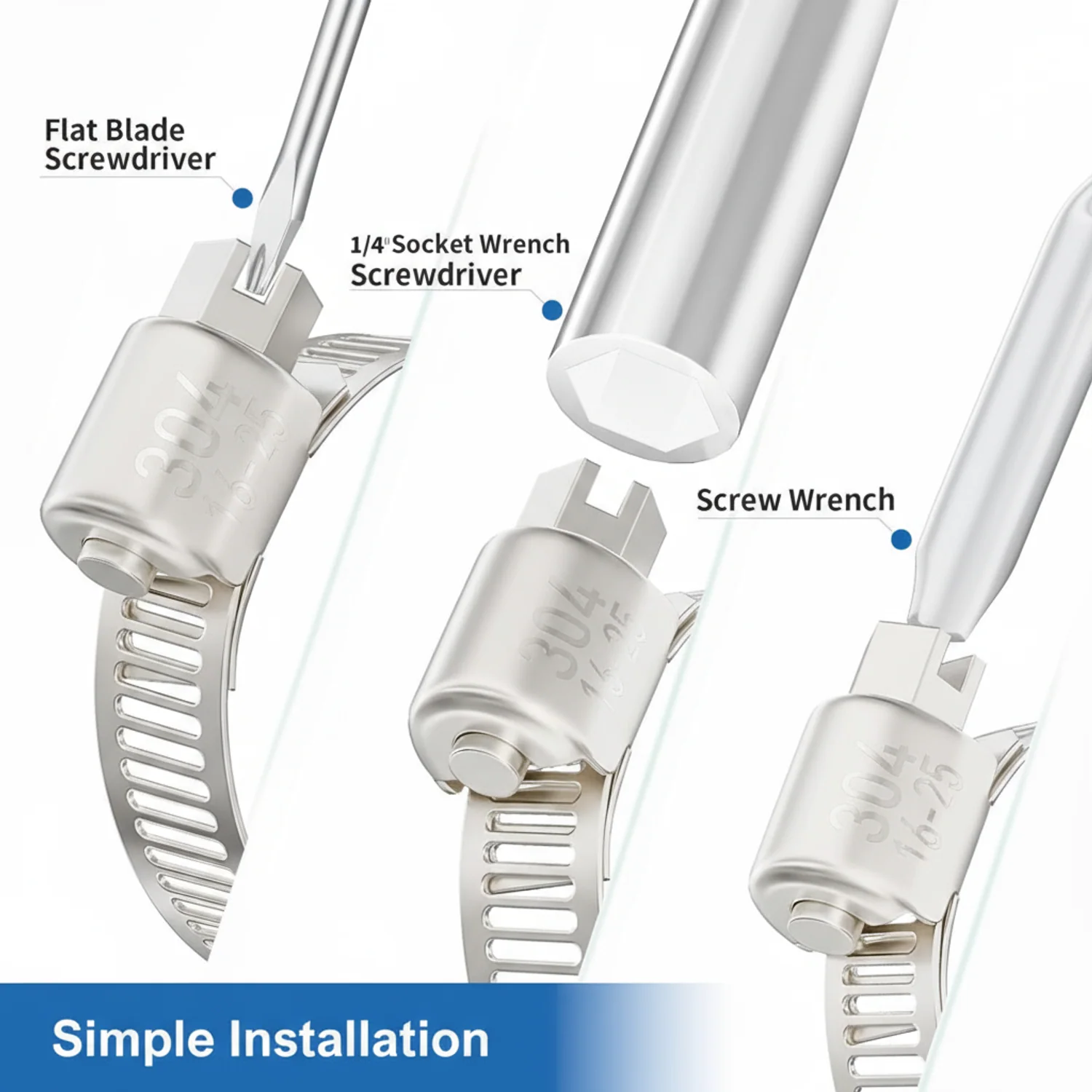

Installation Notes

• Use a 5/16″ slotted screwdriver or nut driver for installation
• Tighten clamp until snug without over-torquing to avoid hose damage
• Recommended installation torque: 35–45 in.lbs. (4.0–5.1 Nm)
• Ensure hose or tubing is fully seated before tightening
• Follow proper installation practices for optimal sealing performance

Packaging

Sold in boxes of 10 clamps.
