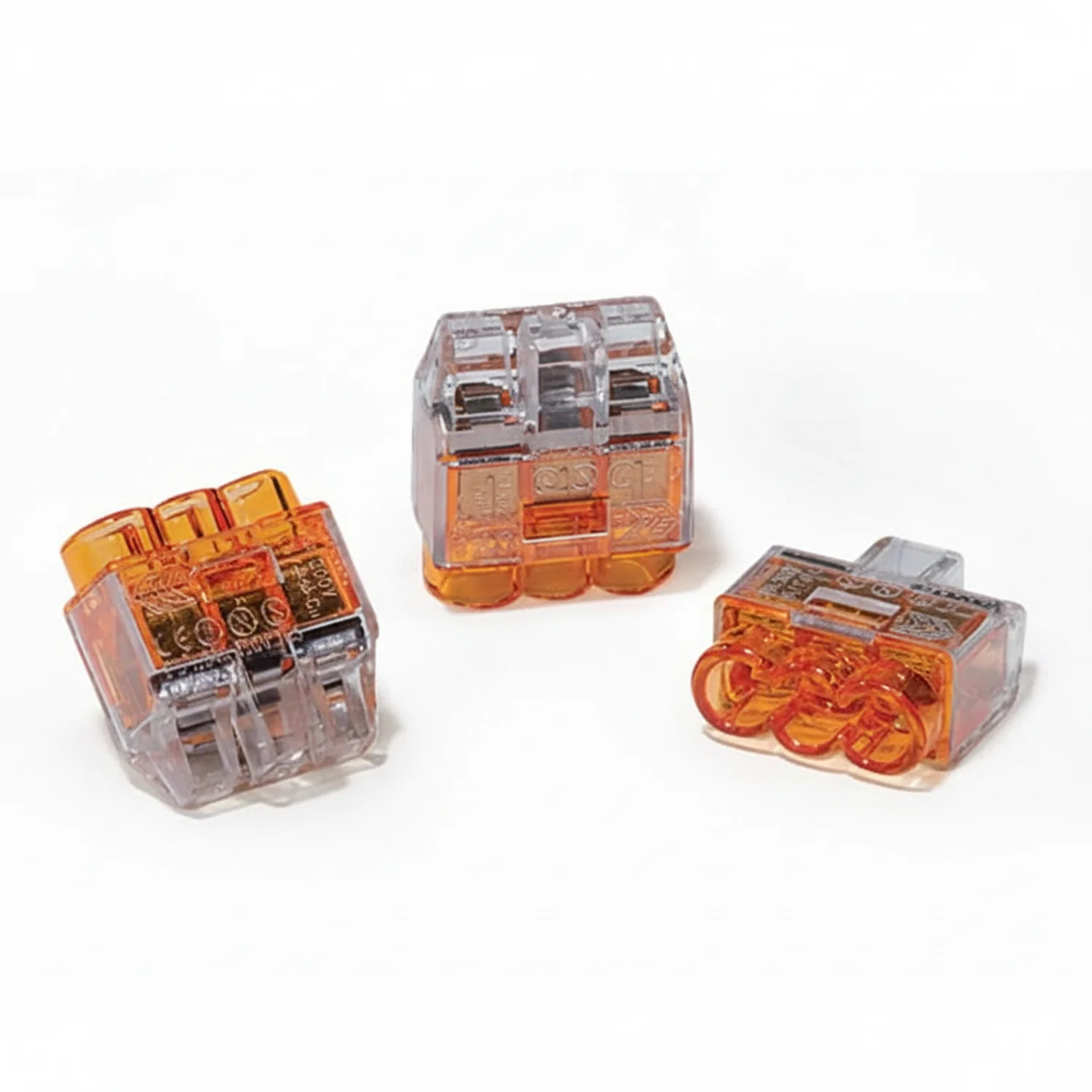

HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
Length: 0.65"
Width: 0.59"
Height: 0.3"
Depth: 0.65"
Color: Orange
Qty/Bag: 100
Material: Polycarbonate (PC)
Material Shortcut: PC
Flammability: UL 94 V0
Halogen free: Yes
Operating Temperature (Metric): -22°F to +185°F (-30°C to +85°C)
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Certification/Specification WEB: UL | ANSI/UL 486-C ENEC cULus CE | 2006/65/EC Intertek Semko | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:2004 UL | ANSI/UL 486-B NEMKO AS | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:201 UL | ANSI/UL 486-A
UL Listed (US and Canada): Yes
UL Listed (US): Yes
Features & Benefits
•Spring technology for safe, secure and reliable connections.
•Smaller footprint fits in tight spaces.
•Low insertion force makes installation of solid or stranded copper wire fast and easy.
•Color coded for easy identification of size.
•Each port accepts multiple wire diameters for flexible applications.
•Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
Length: 0.65"
Width: 0.59"
Height: 0.3"
Depth: 0.65"
Color: Orange
Qty/Bag: 100
Material: Polycarbonate (PC)
Material Shortcut: PC
Flammability: UL 94 V0
Halogen free: Yes
Operating Temperature (Metric): -22°F to +185°F (-30°C to +85°C)
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Certification/Specification WEB: UL | ANSI/UL 486-C ENEC cULus CE | 2006/65/EC Intertek Semko | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:2004 UL | ANSI/UL 486-B NEMKO AS | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:201 UL | ANSI/UL 486-A
UL Listed (US and Canada): Yes
UL Listed (US): Yes
Features & Benefits
•Spring technology for safe, secure and reliable connections.
•Smaller footprint fits in tight spaces.
•Low insertion force makes installation of solid or stranded copper wire fast and easy.
•Color coded for easy identification of size.
•Each port accepts multiple wire diameters for flexible applications.
•Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
$8.73
Original: $24.95
-65%HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg—
$24.95
$8.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HellermannTyton 148-90037 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (PC), Orange, 100/pkg
Length: 0.65"
Width: 0.59"
Height: 0.3"
Depth: 0.65"
Color: Orange
Qty/Bag: 100
Material: Polycarbonate (PC)
Material Shortcut: PC
Flammability: UL 94 V0
Halogen free: Yes
Operating Temperature (Metric): -22°F to +185°F (-30°C to +85°C)
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Certification/Specification WEB: UL | ANSI/UL 486-C ENEC cULus CE | 2006/65/EC Intertek Semko | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:2004 UL | ANSI/UL 486-B NEMKO AS | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:201 UL | ANSI/UL 486-A
UL Listed (US and Canada): Yes
UL Listed (US): Yes
Features & Benefits
•Spring technology for safe, secure and reliable connections.
•Smaller footprint fits in tight spaces.
•Low insertion force makes installation of solid or stranded copper wire fast and easy.
•Color coded for easy identification of size.
•Each port accepts multiple wire diameters for flexible applications.
•Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
